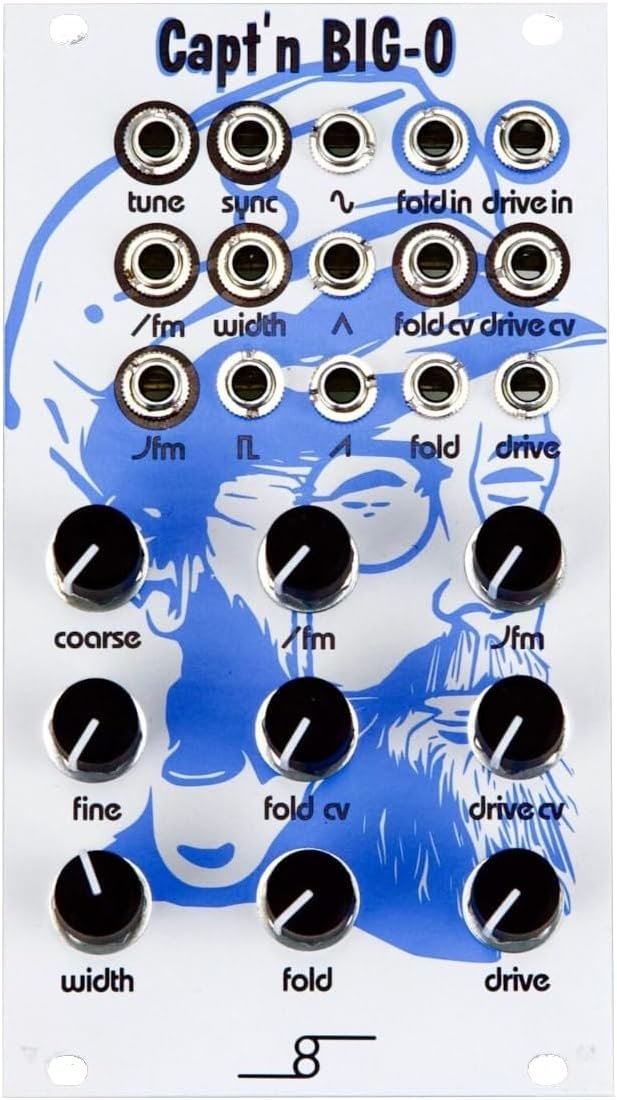

Cre8audio Capt'n Big-O Analog VCO with Waveshaping

Do you like analog waveforms? Capt'n Big-O is for people who like (or want to like) big massive analog sounds. 100% analog components, no oscillator on a chip here. The Capt'n was designed in partnership with the very serious folks at Pittsburgh Modular Synthesizers. It includes Pittsburgh's famous wave folders, a new drive circuit, and it crams as much big analog waviness as possible in a voltage-controlled oscillator module.

Features include:

• 100% analog, original design (not an oscillator on a chip)

• Waveforms (sine, triangle, saw, and square)

• Wave folder/waveshaper – routed by default to sine but patchable to any waveform or external source

• Drive circuit – essentially a 75x overdriven VCA (5V output)

• Linear and exponential frequency modulation (FM)

• Hard sync

• Pulsewidth modulation

• 120mA power draw when running +12V rail

• 108mA power draw when running -12V rail

• Frequency range of oscillator: full range - LFO through audible spectrum

• Input voltage range of oscillator = -10V to +10V
