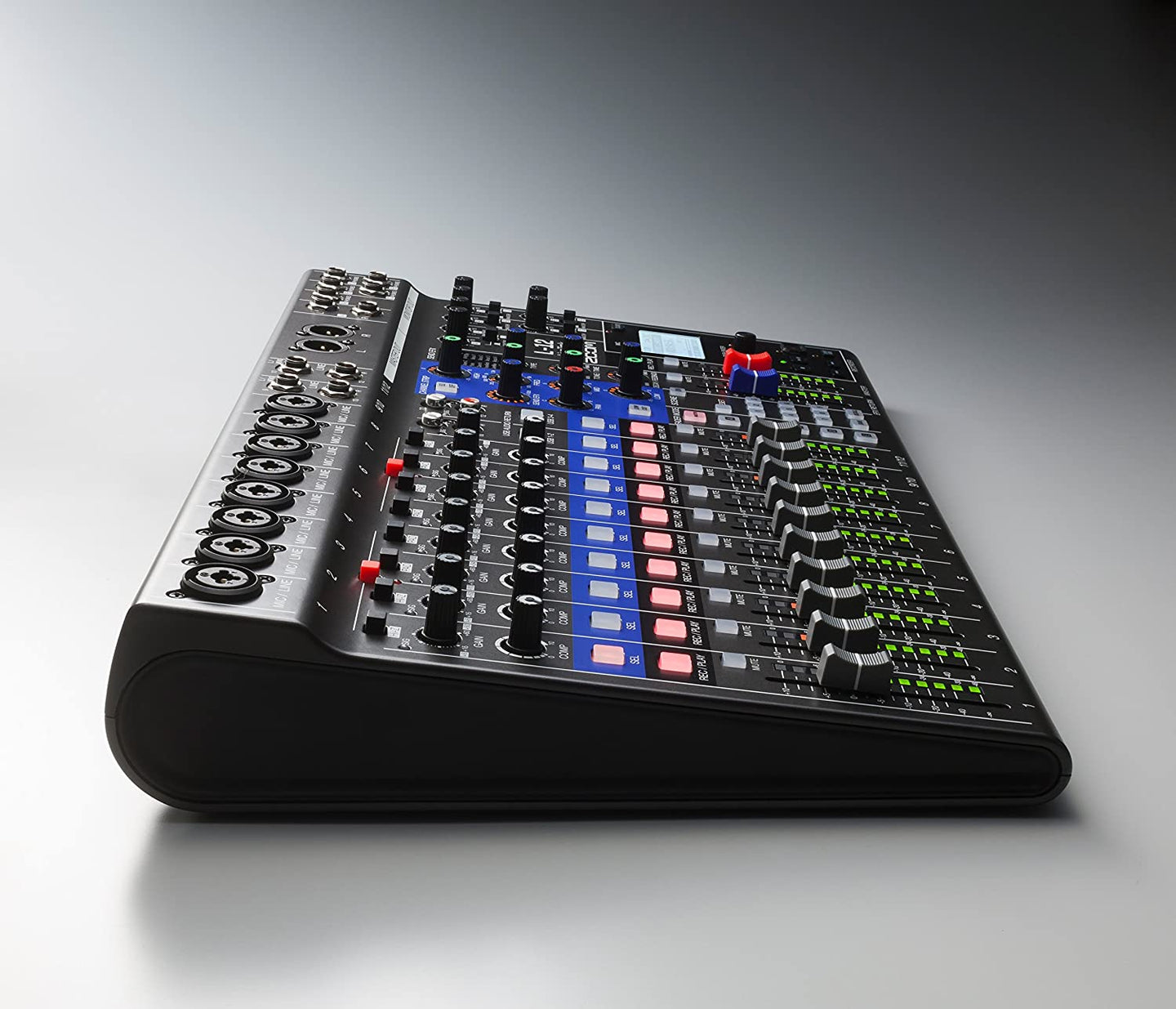

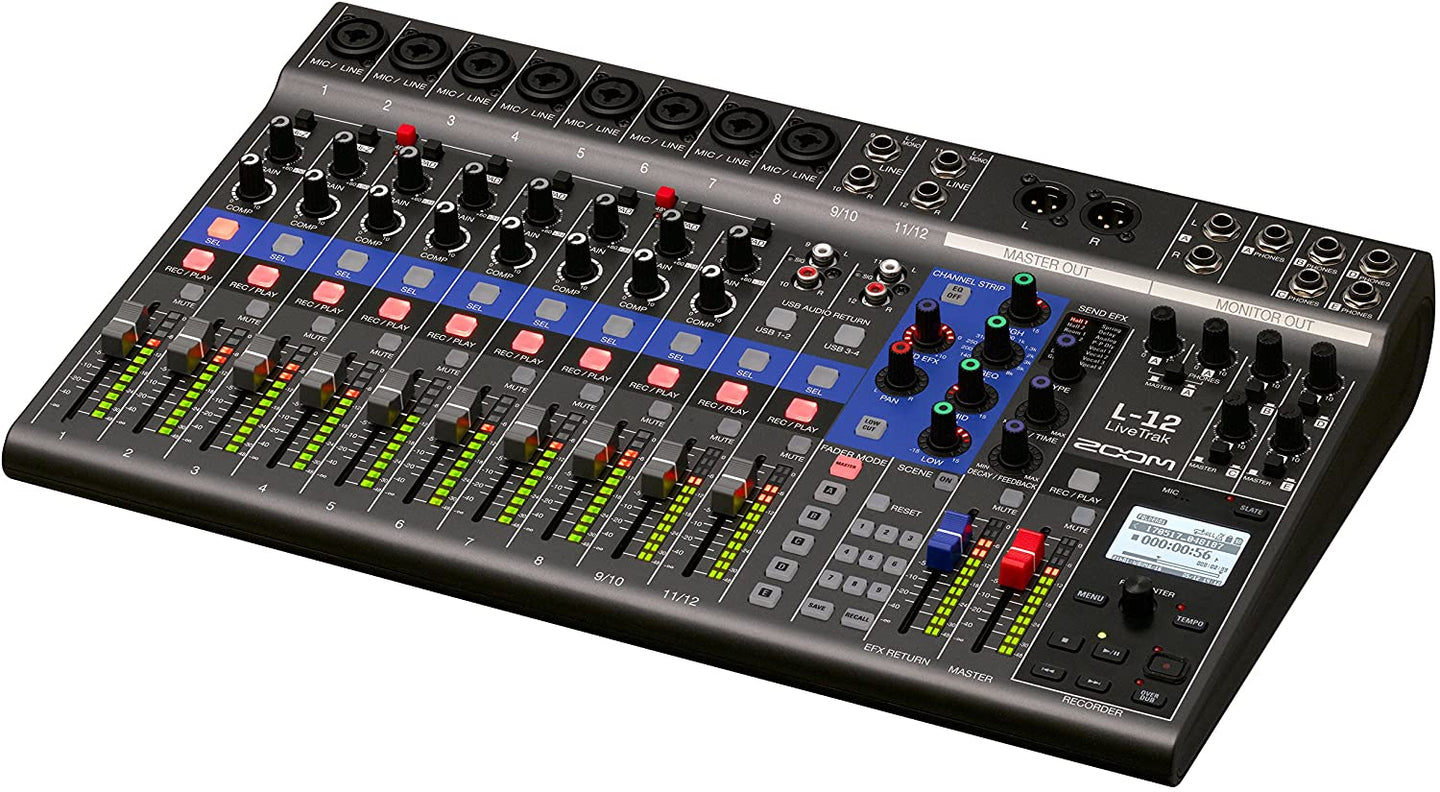

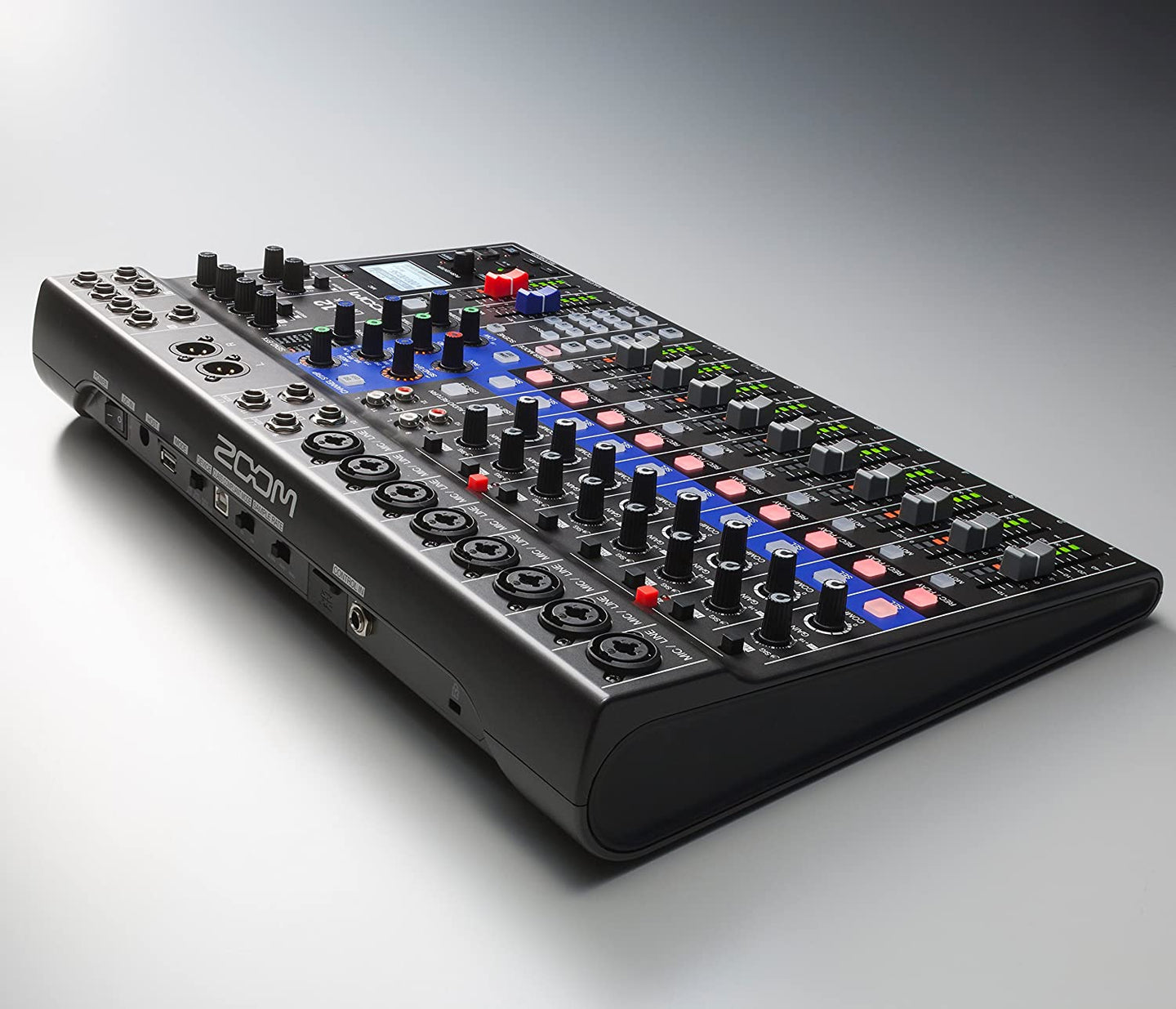

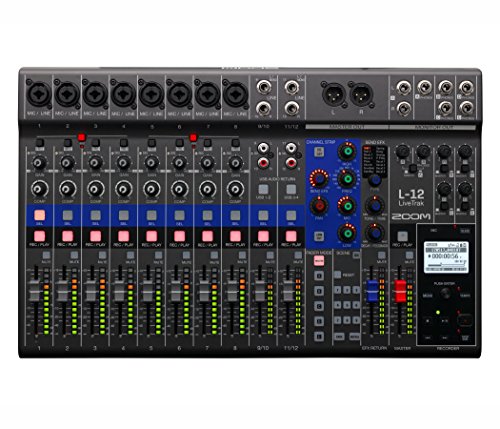

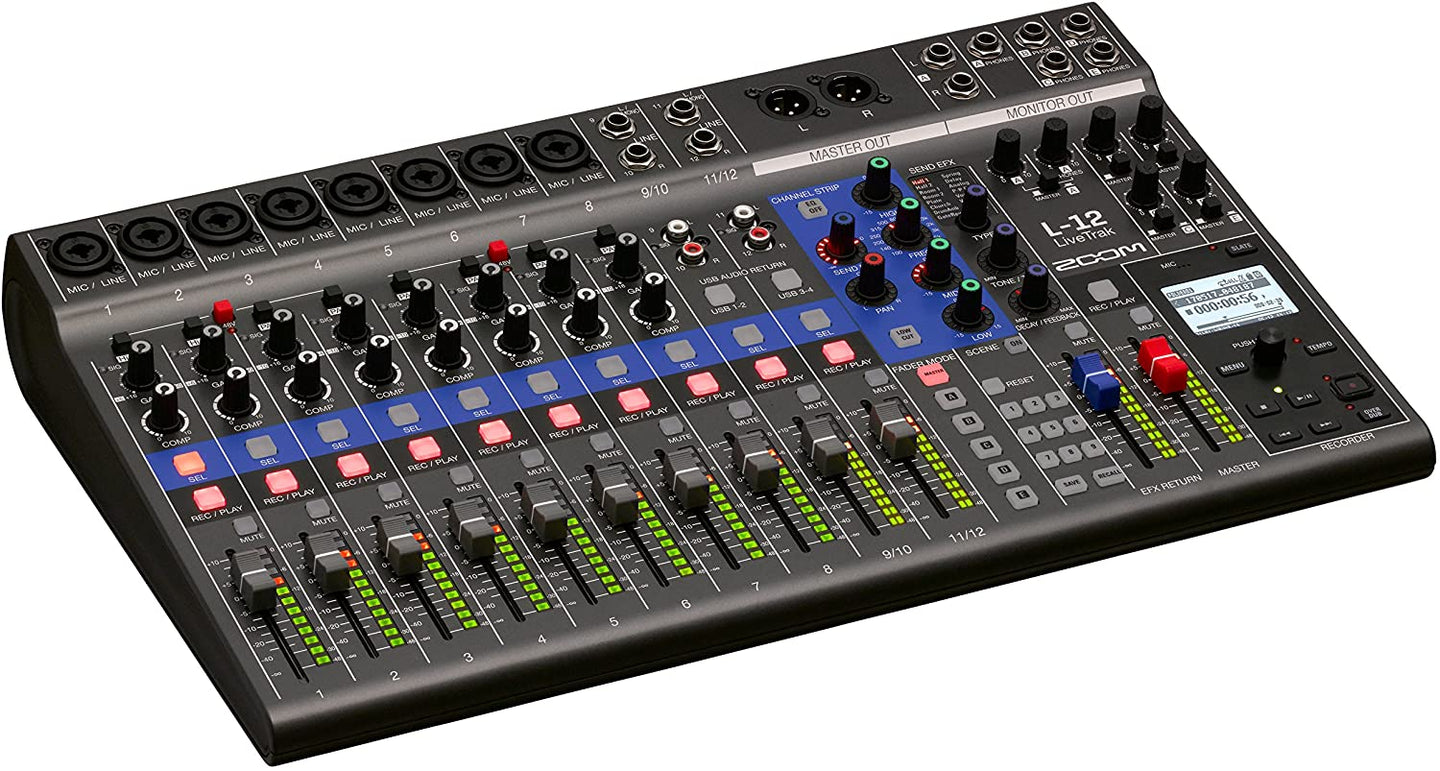

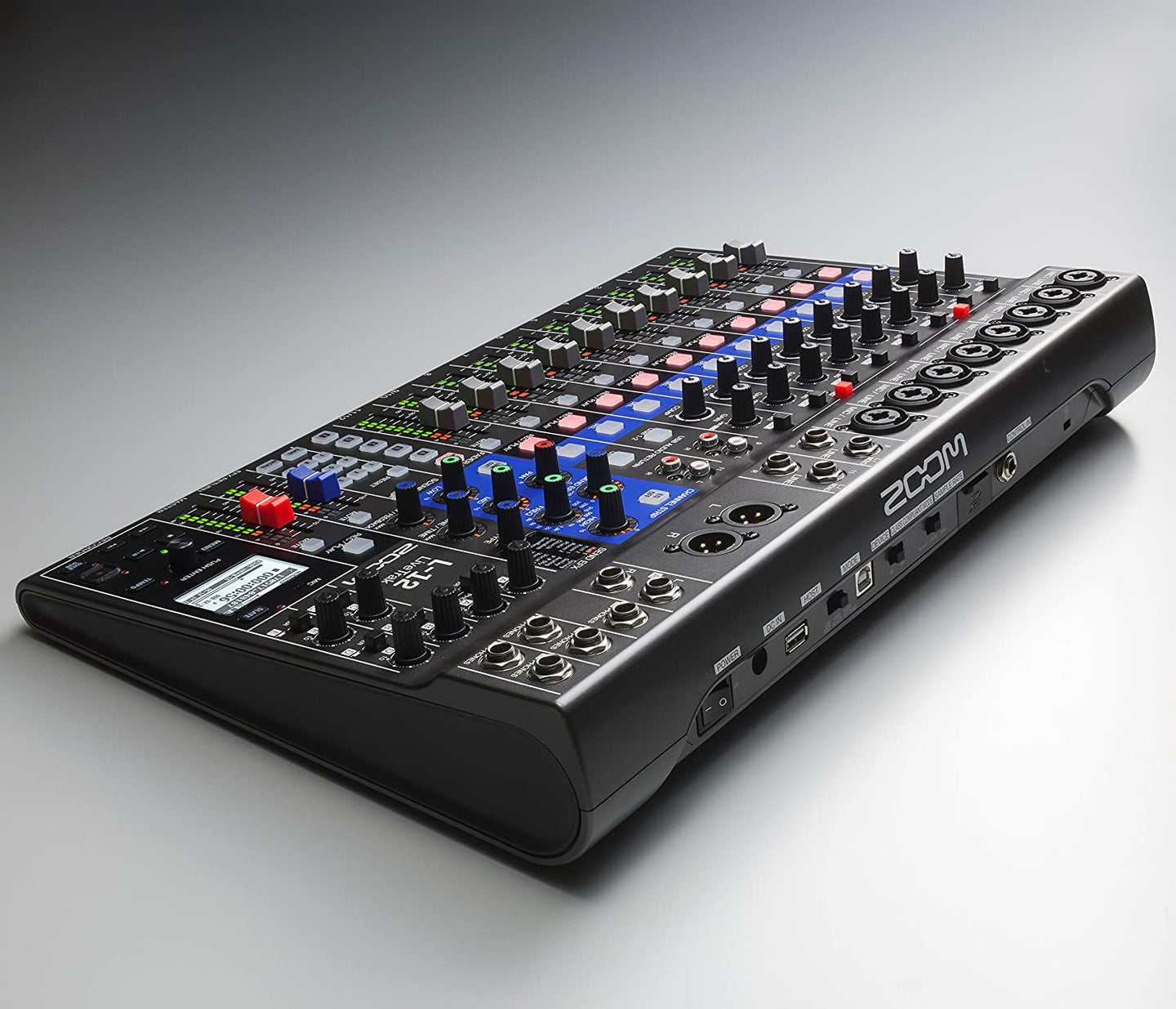

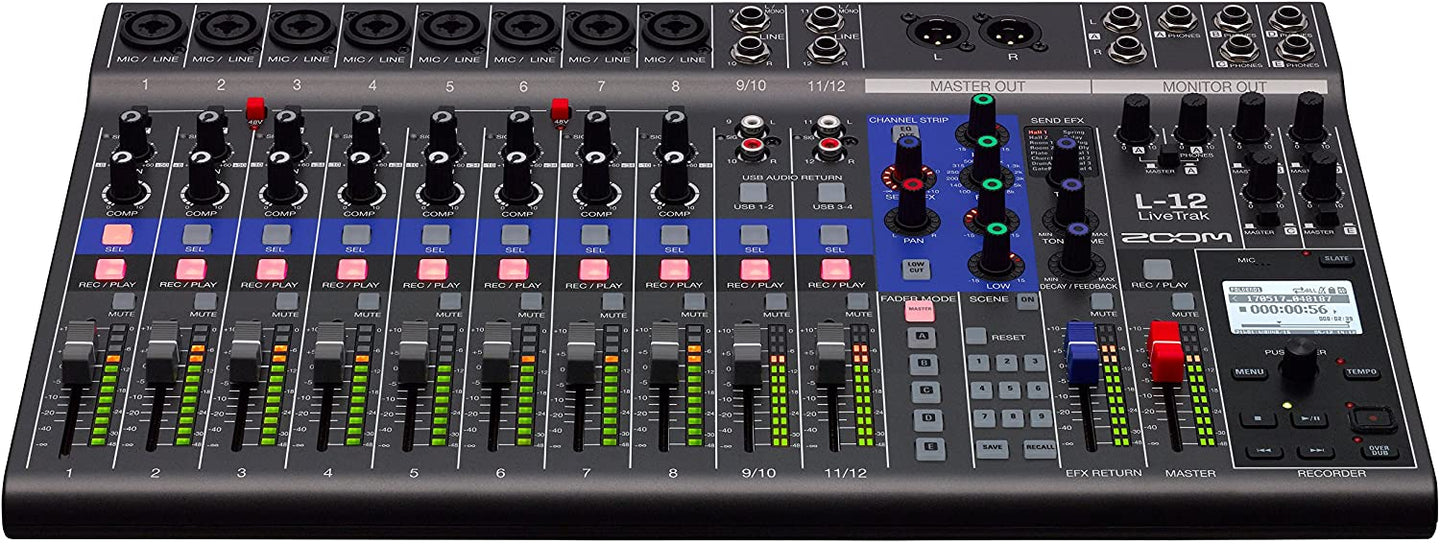

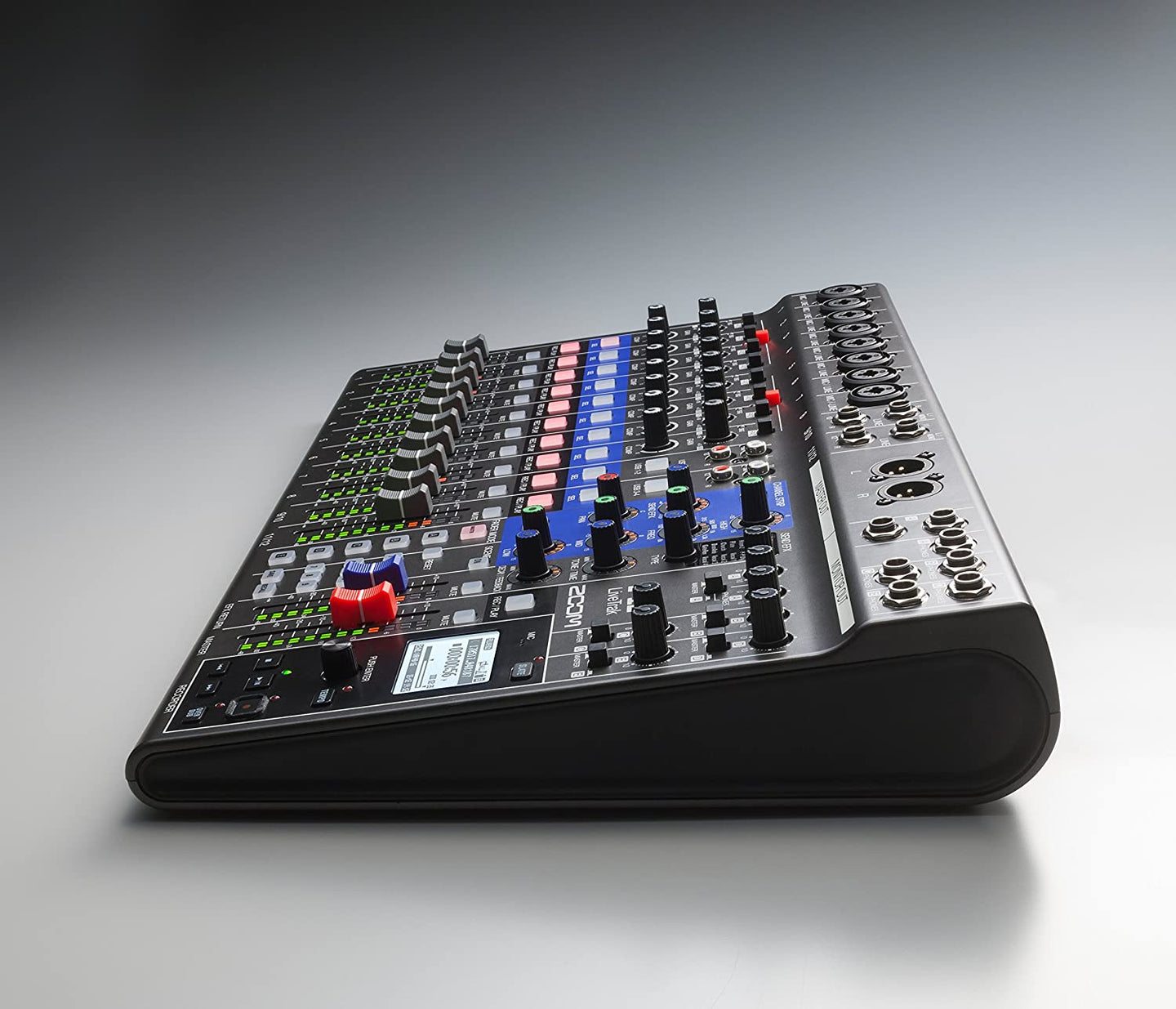

Zoom LiveTrak L-12
Digital Mixer/Recorder
The Zoom LiveTrak L-12 is the only digital mixer that lets you mix live performances and record up to 12 discrete channels, all while providing five individual custom headphone mixes. Plus, it’s got the quietest and most advanced preamps Zoom has ever created.

Whether you’re a musician, podcaster, or member of a band, the power to mix, monitor, and record is now at your fingertips. For creators like you who do everything, this is the one board that does it all.

- 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
- 14-track simultaneous recording, 12-track playback
- 14-in/4-out USB audio interface connectivity
- 5 powered headphone outputs, each with a customizable mix
- Record to an SD card and computer simultaneously
- Scene saving function, up to 9 scenes saved at a time
- 16 built-in delay and reverb effects with adjustable parameters
- Automatic recording starting/stopping capability

In the box
The L-12 comes with:
- AC adapter (Zoom AD-19)
- USB 2.0 cable
- Quick Guide

Effortless Live Mixer
Its 12 discrete channels (eight mono plus two stereo) have 3-band mid-parametric EQ, and 16 built-in send effects. The L-12’s eight mono channels also have a dedicated compressor. You can also route backing tracks from a computer into your live mix using Audio Interface mode.

Record Everything, Remix Anywhere
Record 12 tracks up to 24-bit/96 kHz WAV audio to an SD card (up to 512 GB) while simultaneously mixing your live show. You can mix and overdub your finished project, or transfer the discrete tracks to your favorite DAW for further mixing and editing.

Five Custom Monitor Mixes
The L-12 has five powered monitor mix outputs that each provide an individual mix, allowing every performer a mix that’s tailored to their preferences. Since the L-12 can drive headphones or in-ear monitors, there’s no need for a separate headphone monitoring setup.

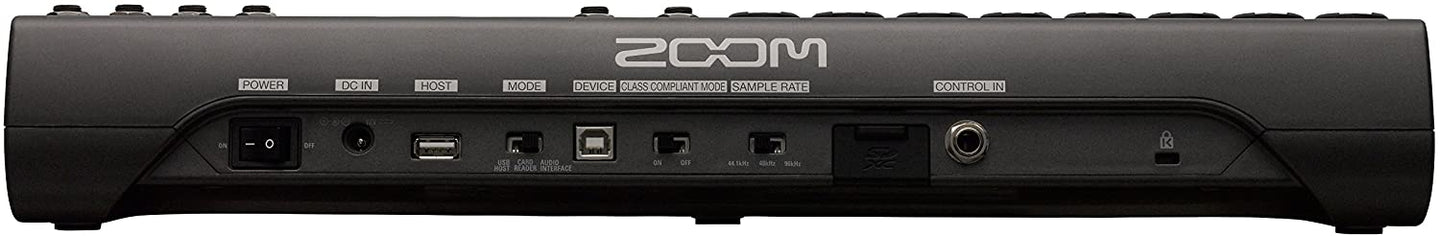

USB Connectivity for Your DAW
As a 14-in/4-out USB audio interface, the L-12 offers limitless creative possibilities. Route signal from each input and the master fader output to any DAW at sample rates up to 48 kHz. You can even route signal from your DAW back into the L-12 on tracks 9/10 or 11/12, allowing you to easily add click or backing tracks to the main mix or monitor mixes.

Advanced Onboard Effects
There are 16 built-in effects, all with fully adjustable parameters. Choose from delay and reverb effects and send them to any channel.

Custom Scene Settings
Nine different scenes can save and recall custom mix settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more. The “Fader Mode” buttons display and adjust mix output from the Master Out as well as Monitor Outs A through E.
