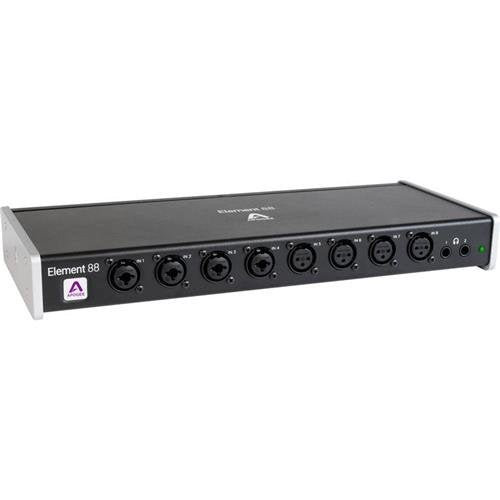

Apogee Electronics Element 88 16x16 Thunderbolt Audio I/O Box for Mac
Apogee Electronics
Out of stock
5% OFF WITH: PMT9Y4W7H1GI
To add this product to your wish list you must Sign In or Create an account
HIGHLIGHTS:
- 16 IN x 16 OUT Thunderbolt Audio I/O box
- AD/DA conversion for recording up to 192kHz/24-bit

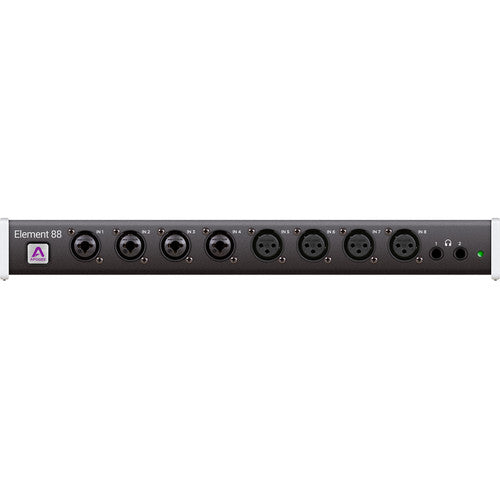

- 8 analog inputs with world-class mic preamps and selectable 48v phantom power for connecting microphones, instruments or line-level devices
4 combination inputs
4 XLR inputs
8 analog outputs
2 balanced L/R XLR outputs
2 balanced 1/4” outputs
2 1/4” stereo headphone output
- Single port Thunderbolt connectivity to Mac for ultra-low latency performance
1.41ms round-trip at 96kHz with a 32 buffer setting

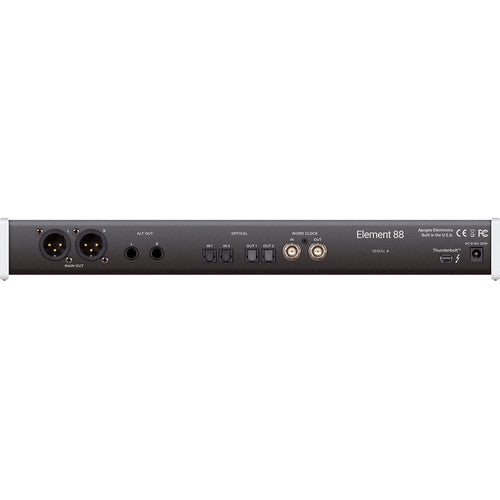

- Optical IN: Supports ADAT, SMUX & S/PDIF
ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- Optical OUT: Supports ADAT, SMUX & S/PDIF
ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- Word Clock IN/OUT via BNC connections for syncing with other digital audio gear

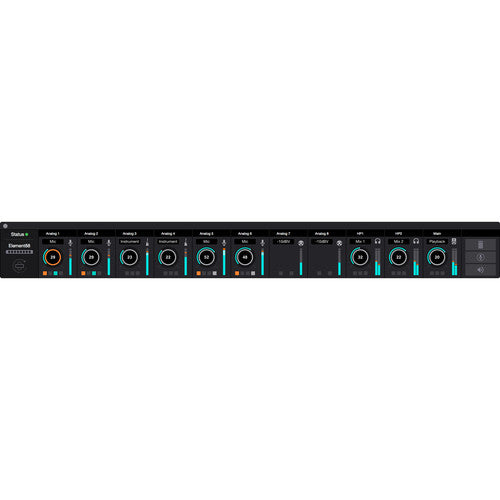

- Apogee Control Software for Mac provides all control of hardware parameters including input gain, output level and low latency monitoring
- Apogee Control Mobile App provides wireless remote control of hardware via iPhone, iPad or iPod touch
- Works with Apogee Control desktop hardware remote control (Sold separately)
- Multi-Unit Thunderbolt support – Connect any two Element audio I/O boxes directly to Thunderbolt ports on your computer
- Apogee Ensemble Thunderbolt expander – Connect any Element to the second port on an Ensemble
SYSTEM REQUIREMENTS:
Mac OS:
- Computer: Thunderbolt-equipped Mac (iMac, Macbook Pro, Macbook Air, Mac Pro)
- Memory: 4 GB RAM minimum, 8 GB recommended
- OS: 10.10 or greater
- Connection: Any available Thunderbolt port*
- Power: DC Power supply included
- *Thunderbolt cable not included
Compatible Software:
- Any Mac Core Audio compatible application
- Recommended apps: Logic Pro, Pro Tools, Ableton Live, GarageBand, MainStage, Final Cut, Digital Performer, Studio One, Cubase, and Nuendo
IN THE BOX:
- Element 88
- Universal Power Supply with standard 3 pin-IEC cable
- Rack ears and mounting screws
- Quick Start Guide
- Warranty Booklet
