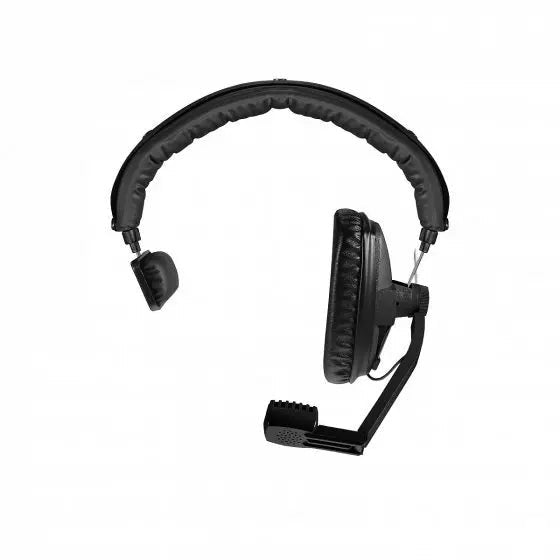

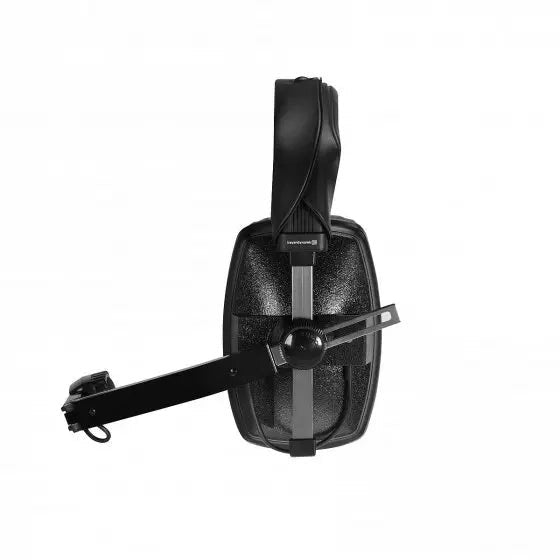

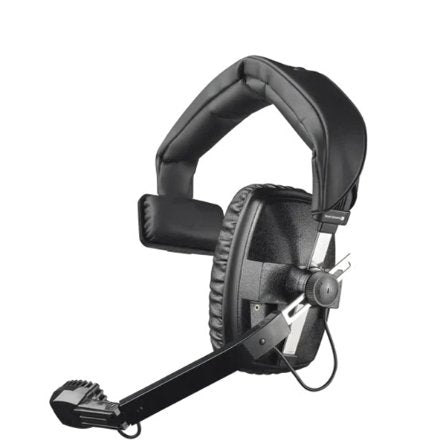

Beyer-Dynamic DT 108 Single-Ear Headset with Dynamic Microphone for Broadcast and Intercom (Closed, 50 Ohm)

The single-ear headset DT 108 is ideal for use in radio, television, reporting, cameras, sound and light mixing consoles and intercome systems. The soft, circumaural ear padding offers a high degree of wearing comfort and excellent isolation from external noise. The padded headband and microphone boom can be individually adjusted. This headset is also available in a version with two ear cups.

NOTE: This professional headset is not supplied with a cable. The required cable for this headset to work correctly is dependent on its interfacing product and specifications.

The DT 108 200/50 Ohm single-muff headset is designed for live, remote broadcasting, for studio, film and TV-applications. One side is open to monitor ambient sound. The protective ear cup attenuates up to 20 dB of ambient noise. The headset features a noise cancelling microphone. Available in different impedances.

Features

Highly sensitive headphone and microphone transducers

Excellent ambient noise attenuation

Capable of handling very high SPL

Rugged construction

Excellent comfort for long-term wearing

Modular construction for easy servicing

Specifications:

Headphone

Headphone Transducer type: . . . . . . . . Dynamic

Operating principle: . . . . . . . . . . . . . . .Closed

Frequency response: . . . . . . . . . . 30 - 20,000 Hz

Nominal impedance: . . . . . . . . . . .50 Ohm +- 10% per cartridge*

Nominal SPL at 1 kHz: . . . . . . . . . . . 94 dB

Power handling capacity: . . . . . . .1000 mW 124 dB

Ambient noise attenuation: . . . . . . . . .approx. 20 dBA

Sound coupling to the ear: . . . . . . . . Circumaural

Headband pressure: . . . . . . . . . . . . . .approx. 4.5 N

Weight (without cable): . . . . . . . . .283 g

Microphone

Transducer type: . . . . . . . . . . . . . . . .Dynamic

Operating principle: . . . . . . . . . . . . .Pressure gradient

Frequency response: . . . . . . . . . . . . 40 -12,000 Hz

Polar pattern: . . . . . . . . . . . . . . . . . . Hypercardioid

Output voltage: . . . . . . . . . . . . . . . approx. 2.5 mV at a distance of 5 cm

Nominal impedance: . . . . . . . . . . .200 Ohm

Load impedance: . . . . . . . . . . . . . . . >= 1000 Ohm
