Chauvet DJ Wedge Tri LED Wash/Truss Warmer

Chauvet Lighting WEDGE TRI LED Lighting

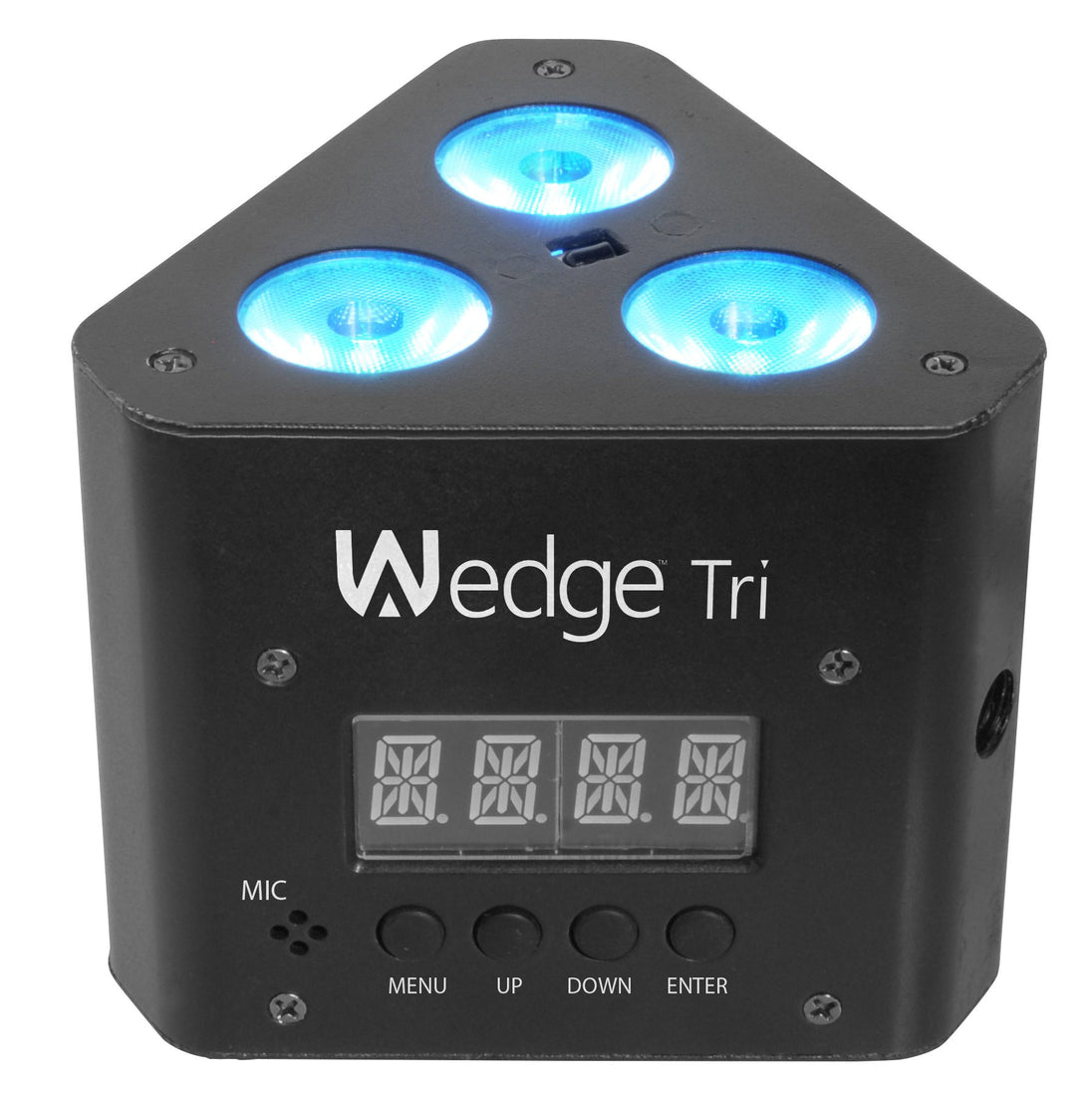

EZWedge Tri is a battery-operated, tri-color LED wash light that fits perfectly inside TRUSST Goal Post and Arch Kit truss systems. The rechargeable, lithium battery lasts up to 20 hours from a single charge, and you can easily check the battery status with the built-in battery life indicator. The EZWedge Tri attaches to 35-mm truss without the need for a bracket, using M10 or M12 threaded rig points. Its flicker-free operation is suitable for on-camera use and it provides smooth dimming with built-in dimming curves. Easily control static colors and automated programs with the included IRC-6 remote, or create any color without DMX by using the built-in digital display and build coordinated light shows by linking other tri-color LED fixtures in Master/Slave mode.


Battery-operated, tri-color LED wash light fits perfectly inside TRUSST® Goal Post and Arch Kit truss systems

Rechargeable, lithium battery lasts up to 20 hours from a single charge

Easily check the battery status with the built-in battery life indicator

Attaches to 35-mm truss without the need for a bracket, using M10 or M12 threaded rig points

Easily control static colors and automated programs with the included IRC-6 remote

Create any color without DMX by using the built-in digital display

Smooth dimming with built-in dimming curves

Flicker-free operation suitable for on-camera use

Create coordinated light shows by linking other tri-color LED fixtures in Master/Slave mode



DMX Channels: 3 or 8
DMX Connectors: 3-pin XLR
Light Source: 3 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
Strobe Rate: 0 to 17 Hz
PWM Frequency: 5.39 KHz
Beam Angle: 16°
Illuminance: 1,066 lux @ 2 m
Power Linking: 33 units @ 120 V; 57 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 17 W, 0.2 A @ 120 V, 60 Hz
16 W, 0.1 A @ 230 V, 50 Hz
Weight: 2.8 lb (1.3 kg)
Size: 4.3 x 4.3 x 5.4 in (108 x 108 x 136 mm)
Included Controllers: IRC-6
