- Input Impedance: 1MΩ
- Output Impedance: 100Ω
- Wah Range Selector: WARM—290Hz to 1.4kHz
- CLASSIC—360Hz to 1.8kHz
- Current Consumption: Max 30mA
- Dimensions: 3.19inches (W) x 6.38inches (D) x 2.01inches (H)
- Weight: 28.35ounce
1. INPUT: 1/4"mono audio jack

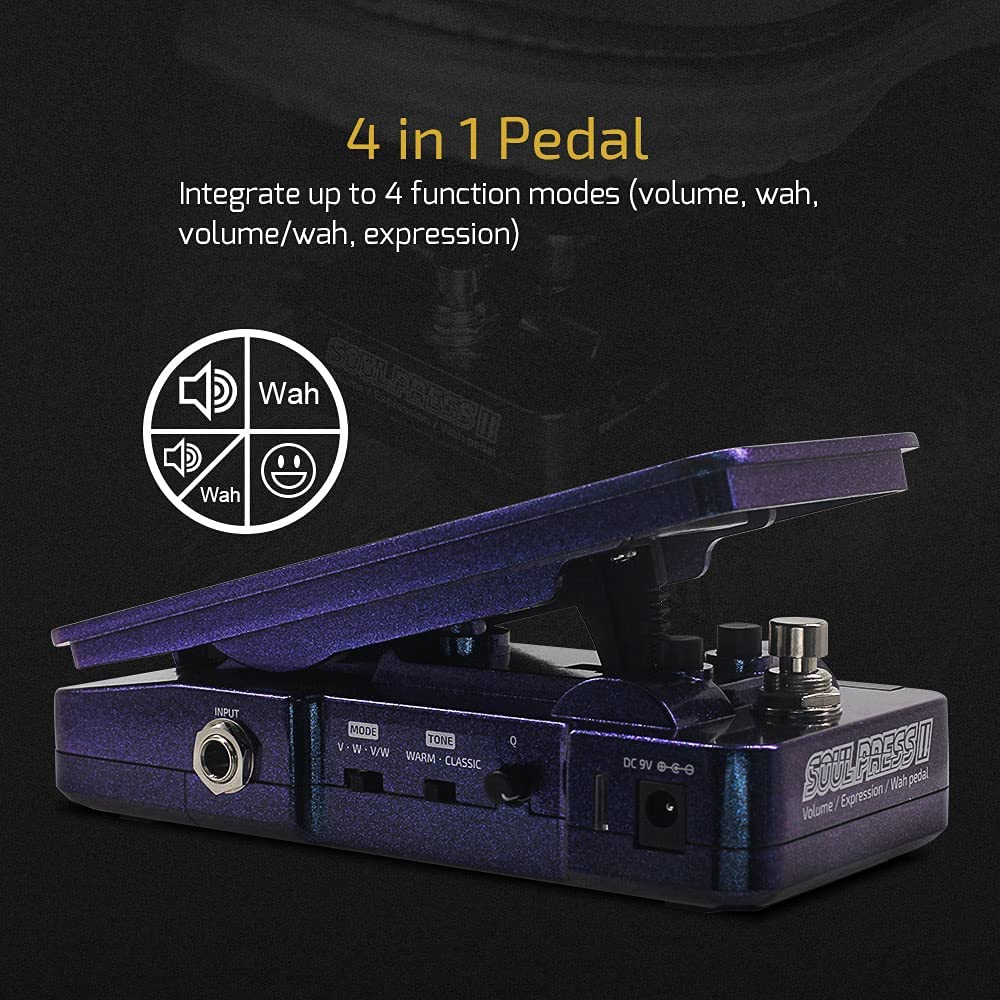

2. MODE: For selecting 3 modes with LEDs
3. TONE: For selecting wah filter range
4. Q: For adjusting wah filter frequency width
5. DC IN: Plug in 9V DC adapter (can also be powered by 9V battery)
6. Footswitch: Switch between on/off status or active volume/wah in V/W mode

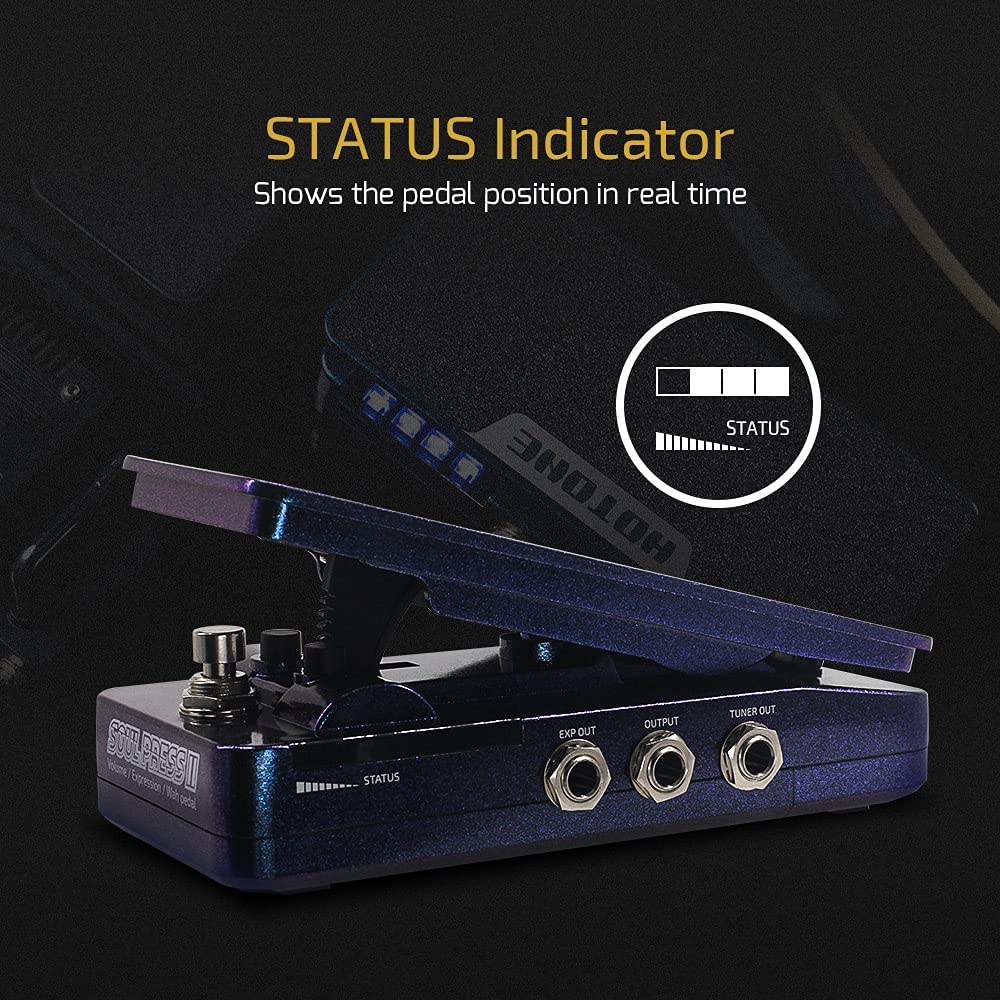

7. STATUS: A set of LEDs showing the current pedal position

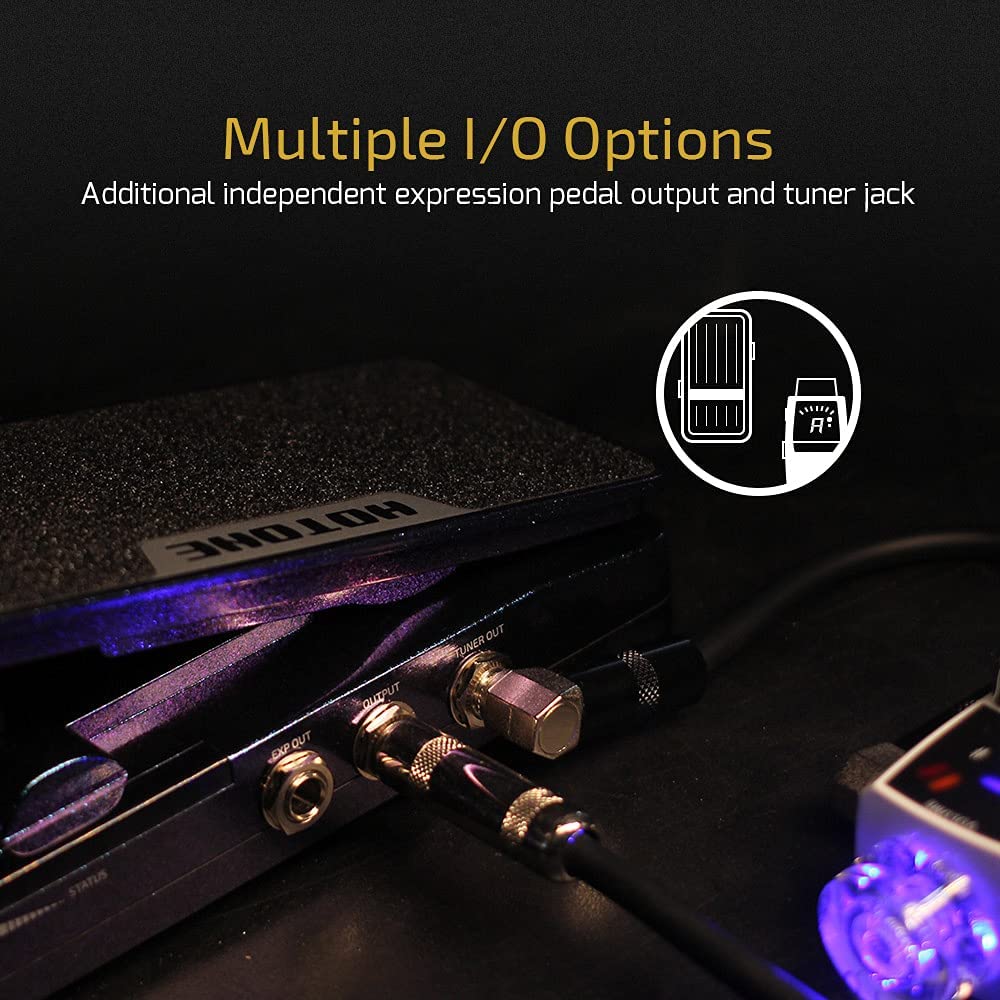

8. EXP OUT: 1/4” TRS jack, for connecting to another device
9. OUTPUT: 1/4"mono audio jack
10. TUNER OUT: 1/4" mono audio jack for tuner
