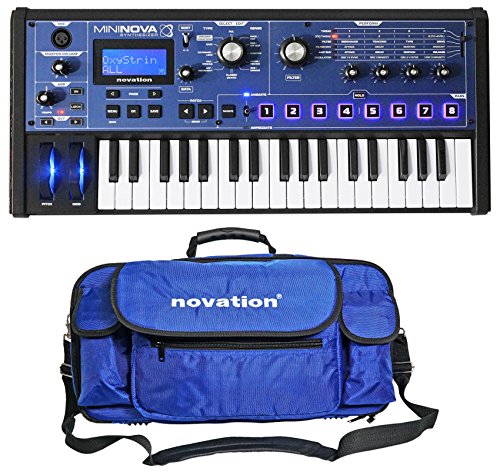

Novation MiniNova 37-Key Compact USB MIDI Keyboard Synthesizer + Carry Case

Novation MiniNova 37-Key Compact USB MIDI Keyboard Synthesizer + MiniNova Carry Case bag bundle.

Features Mininova:

Product Hardware Specifications
Utility, display and patch select controls

16 character custom LCD
1x large detented patch select encoder
1x patch sort switch
1x volume dial
1x detented data encoder
5x navigation/utility buttons
2x patch navigation buttons

Keyboard/performance controls

Pitch wheel (LED lit)
Modulation wheel (LED lit)
37 note keyboard with velocity
4x smooth edit/performance pots
1x large smooth filter pot
1x six position parameter selector switch
6x parameter indicator LEDs
8x three-colour, back-lit animate/arpeggiator/favourite patch-select buttons
2x animate/arpeggiate LED indicators
1x back-lit 'hold' button
1x animate/arpeggiator/favourite patch toggle switch
1x 'favourite' patch select button
1x arpeggiator tempo control pot
1x arpeggiator tempo indicator LED
2x back-lit arpeggiator control encoders
2x back-lit octave select buttons

Inputs, Outputs, rear panel

XLR dynamic mic input
1x ¼” jack inputs
2x ¼” jack outputs
1x ¼” jack headphone output
Sustain pedal on ¼” jack input
MIDI in/out
12 volt power input
USB/DC/off power switch
USB port (MiniNova can be powered via USB)
Kensington security slot

Synth Engine

Up to 18 note polyphony (dynamic voicing)
Mono-Timbral

Per patch

3x oscillators
1x noise generator
2x ring modulators

Waveforms include:

Square, sine, tri, sawtooth, pulse, 9x saw:pulse combinations
20x digital waveforms
36x wavetables

Filter types

2x filters per patch
low pass no resonance 6dB per octave
low pass 12dB
low pass 18dB
low pass 24dB
band pass 6:6
band pass 6:12
band pass 12:6
band pass 6:18
band pass 18:6
band pass 12:12
high pass no resonance 6dB per octave
high pass 12dB
high pass 18dB
high pass 24dB

Modulation sources

20 modulation slots per patch
6x envelope generators
3x LFOs
Aftertouch (Supported in the engine. Note, keyboard does not generate aftertouch)
Velocity
Key scaling/track
Mod wheel
Expression pedal

Total of 66 Destinations including

Oscillator pitch, pulse width, wavetable index, level and sync
Filter cutoff, resonance, envelope settings
Effects parameters and send levels
Recursive modulation (modulating modulation sources themselves)

5 effects slots per patch

Distortion – up to 2 instances
Compressor – up to 2 instances
Chorus/Phase – up to 4 instances
Delay – up to 2 instances
Reverb – up to 2 instances
Gator
EQ

Misc

VocalTune
12 band vocoder
Arpeggiator – 33 patterns
Realtime Arp rhythm editing function
Chord function – lock up to 10 notes
Patch storage - up to 384 on hardware (ships with 256 factory patches)

Power Requirements

USB bus powered
9V DC power supply included
Maximum power consumption 9V DC 300mA
