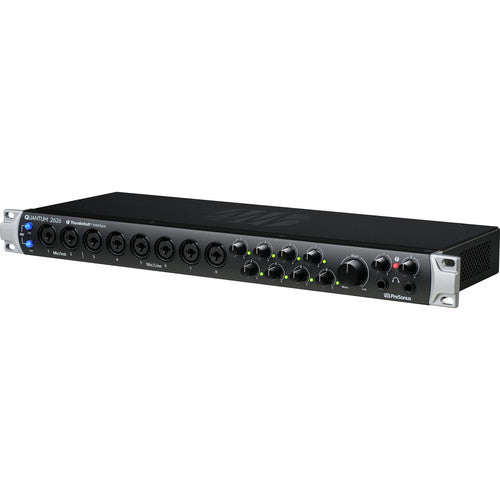

PreSonus Quantum 2626 26x26 Thunderbolt 3 Ultralow-Latency Audio Interface (Open Box)

The PreSonus Quantum 2626 is a professional ultra-low-latency audio interface that provides up to 26 inputs and 26 outputs of combined analog and digital connections. The unit’s converters allow for low-latency recording as well as dynamic ranges of 115 dB on both AD (analog to digital) and DA (digital to analog) conversions. Furthermore, the Quantum 2626 captures audio at 24-bit resolution, achieving sample rates up to 192 kHz.

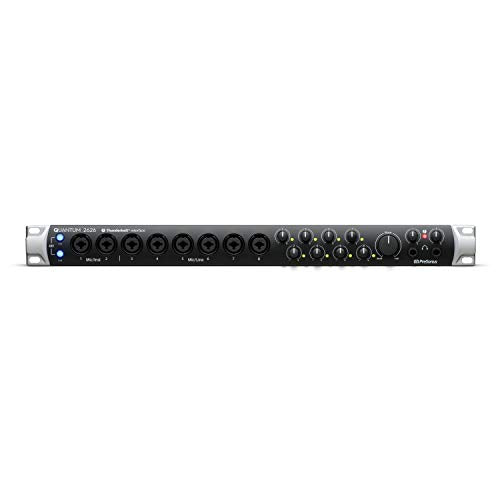

For analog I/O, the Quantum 2626 provides a complement of eight inputs and eight outputs. Microphone inputs are PreSonus recallable XMAX preamps and include eight combo XLR-1/4" XLR jacks for instruments (channel 1-2), mic-level (channels 1-8), or line-level (1-8) signals, as well as two 1/4" preamp outputs and two 1/4" line returns. The output section includes eight 1/4" TRS outputs, two 1/4" main outputs, and a two headphone jacks, each with dedicated volume controls.

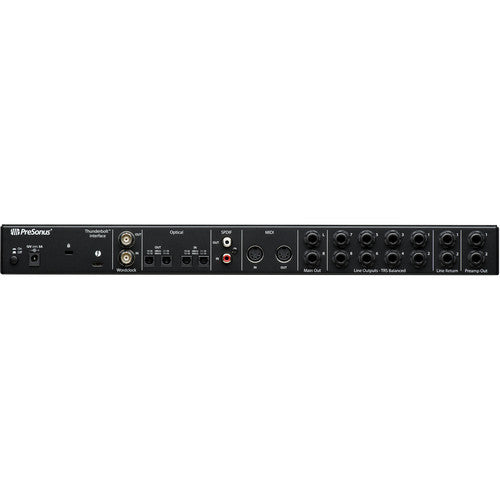

The digital I/O includes two banks of optical ADAT I/O as well as S/PDIF connections, bringing the grand total of ins and outs to 26x26. You'll find that the unit sports BNC wordclock connections, facilitating wordclock sync with other pieces of gear in your studio such as a master clock. The 5-pin DIN MIDI I/O lets you connect your MIDI controller and send MIDI signals. There are eight LEDs for each channel, which indicate signal presence and clipping. The Quantum 2626 is powered by the included 12 VDC power supply and ships with PreSonus Studio One Artists and the Studio Magic Plug-In Suite.

INCLUDES:
- PreSonus Quantum 2626: 26x26 Thunderbolt 3 Ultralow-Latency Audio Interface
- Power Supply
- Limited 1-Year Warranty

FEATURES:
- The fastest Thunderbolt 3 audio interface around, with round-trip latency of less than 1 ms.
- 8 front-mounted ultra-transparent XMAX analog mic preamps give pristine quality.
- 24-bit/192kHz digital converters deliver amazingly clean sound with 120dB of dynamic range
- Comes with over $1000 worth of recording software including Studio One Artist, Ableton Live Lite, and Studio Magic plug-in suite.
- Equipped with 2 combo mic/instrument inputs and 6 mic/line inputs.
- 2 direct outputs with dedicated line-level returns for inserting output gear.
- Up to 26-in/26-out when expanded via dual ADAT Optical.
- Contains 1/4” TRS Left and Right main outputs and 8 1/4” TRS line outputs, DC-coupled.
- 2 1/4” headphone outputs with dedicated volume.
- Dual ADAT Optical, S/PDIF, MIDI, and BNC word clock I/O
