Product Description

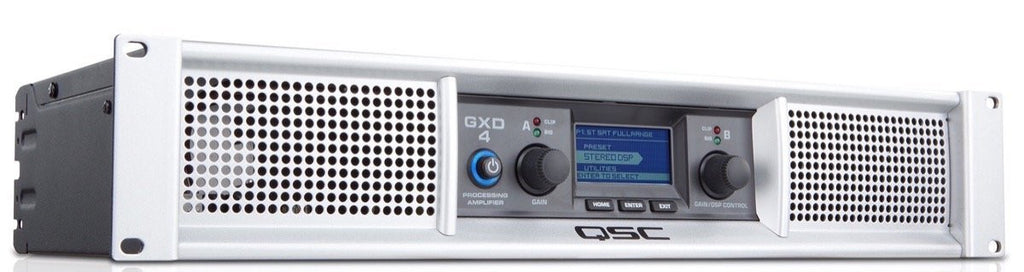

QSC GXD 4 Professional 1600W Power Amplifier with DSP.

QSC GXD4 is a power amplifier designed for professional PA systems utilizing speakers with 4 and 8 ohm loads and a maximum output of 1600W. The GXD 4 employs a class D output stage with a universal power supply for high performance and efficiency, while keeping the unit lightweight at 11.3 lbs. The integrated DSP section includes High and Low-Pass filters (24dB LR), 4-band parametric equalizer, signal alignment delay, and RMS/Peak speaker protection limiting.

The parallel XLR and 1/4" TRS input connectors offer broad compatibility with convenient loop-through capabilities, while the professional binding posts and NL4 connector provide mono and bi-amped speaker connections. In addition to the limiting offered on inputs and outputs, the GXD employs smart speaker protection by providing settings for the loudspeaker's continuous output and impedance (4 ohm or 8 ohm). The GXD 4 ships with a standard IEC power cord.

Includes:

IEC Power Cord
Limited 3-Year Warranty

Features:
High peak output power with up to 1600 W
Power levels matched to the most popular loudspeakers and optimized for maximum real-world headroom into 4-ohm and 8-ohm speaker systems
Class-D output stage with a universal power supply for high performance and efficiency
Extensive built-in loudspeaker processing, includes high & low-pass filters, 4-band PEQ, limiting, and delay
Large LCD display simplifies amplifier setup and indicates amp status
Inputs: Parallel XLR and 1/4” TRS connectors for compatibility with any source while providing convenient loop-thru capability
Precision rotary encoders for gain and DSP parameter control
Outputs: Professional binding post and NL4 connectors (compatible with NL2) provide for mono and bi-amp speaker connections
Digital Limiting automatically protects the amplifier from damage due to temperature rise or overdrive
Adjustable speaker protection to match your loudspeaker’s power and impedance
Front panel LEDs indicate signal presence, input overload, and amplifier clipping
