RME Digiface USB 66-Channel 24/192 ADAT to USB Optical Audio Interface (Renewed)
RME
Out of stock
To add this product to your wish list you must Sign In or Create an account

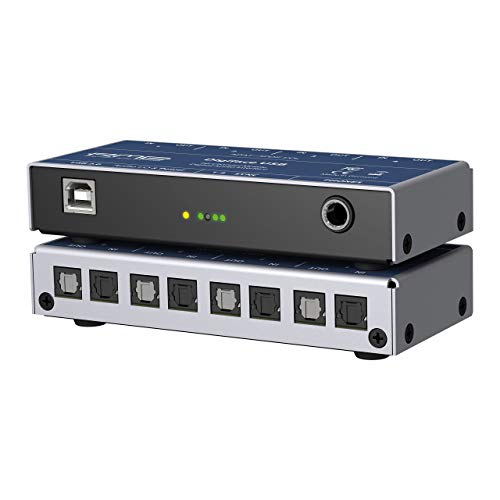

The Digiface USB from RME is a portable USB 2.0 audio interface designed to quickly and efficiently transfer 24-bit / 192 kHz digital audio data in ADAT and S/PDIF format to Windows and Mac computers. Lightweight (at 0.49 lb), compact, and bus-powered, it is well suited for mobile recording/mixing applications or remote monitoring solutions.
The Digiface USB offers four optical ADAT / S/PDIF I/Os and a high-quality analog line/phone stereo output via a 1/4" TRS jack, for a total of 32 inputs and 34 outputs when using ADAT optical. It also comes with the real-time mixer software TotalMix which allows you to mix and route all inputs and playback channels simultaneously, to any hardware outputs. The software features a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and more.
The included DIGICheck utility software provides a suite of tools to test, measure, and analyze digital audio streams with a high-precision peak/RMS level meter, a spectral analyzer, a vector audio scope, and more.
Interface: USB 2.0, bus-powered, no external power supply required
Sample rates: 28 kHz to 200 kHz
66 channels: 32 in / 34 out

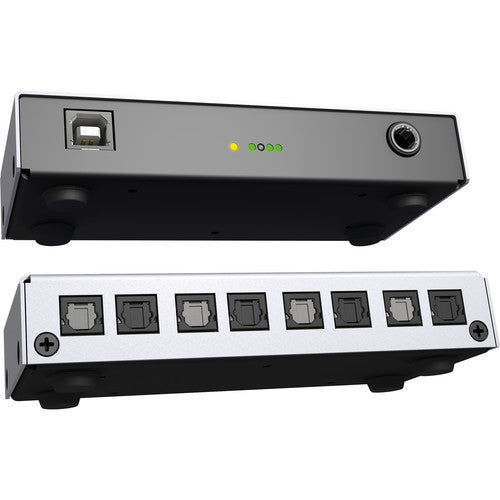

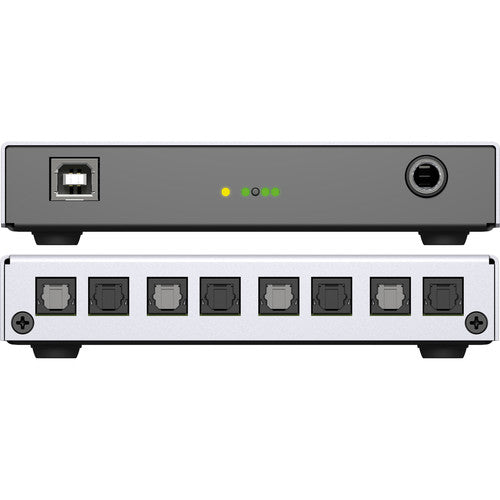

4 x ADAT / S/PDIF optical input ports
4 x ADAT / S/PDIF optical output ports
Standard speed: 32 channels, 24-bit/up to 48 kHz, record/playback via ADAT optical
Double speed: 16 channels, 24-bit/96 kHz, record/playback via ADAT optical (S/MUX)
Quad speed: 8 channels, 24-bit/192 kHz, record/playback via ADAT optical (S/MUX4)
Each single optical port can use either ADAT (up to 8 channels) or S/PDIF (stereo)
ADAT and S/PDIF I/Os can be used simultaneously
One analog line/headphone stereo output, provides separate output for independent submix
All settings can be changed in real-time
TotalMix allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs, with 46-bit internal resolution
TotalMix for latency-free submixes and ASIO Direct Monitoring
Compact, portable, and lightweight audio interface
Slave and master clock modes – Internal, ADAT input, S/PDIF input
Buffer sizes/latencies 32 to 8192 samples, selectable
Automatic and intelligent master/slave clock control
SteadyClock: Jitter-immune, super-stable digital clock
SyncAlign guarantees sample-aligned and never-swapping channels
SyncCheck tests and reports the synchronization status of input signals
DIGICheck DSP: Level meter in hardware with peak and RMS calculation
High-resolution Bitclock PLL (audio synchronization) in ADAT mode, even in vari-speed operation
Near-zero effective clock jitter influence on A/D and D/A conversion
PLL ensures zero dropout, even at more than 100 ns jitter
Low-Jitter Design:
