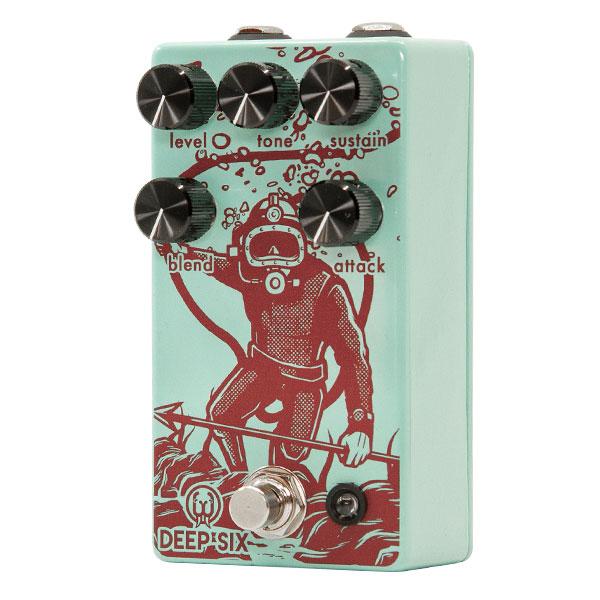

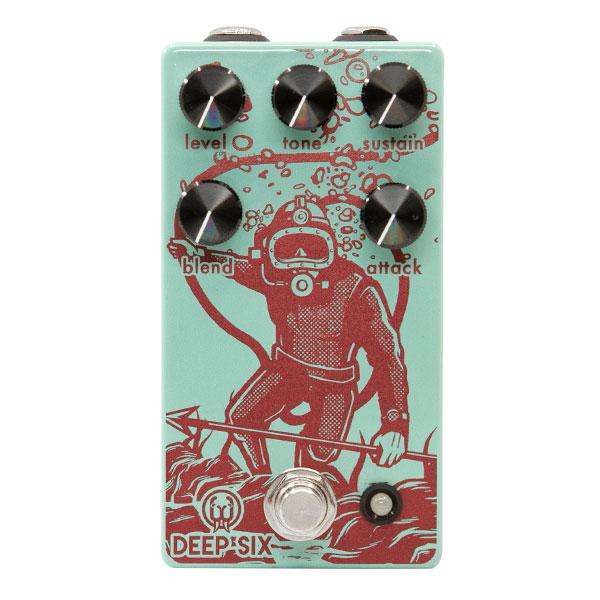

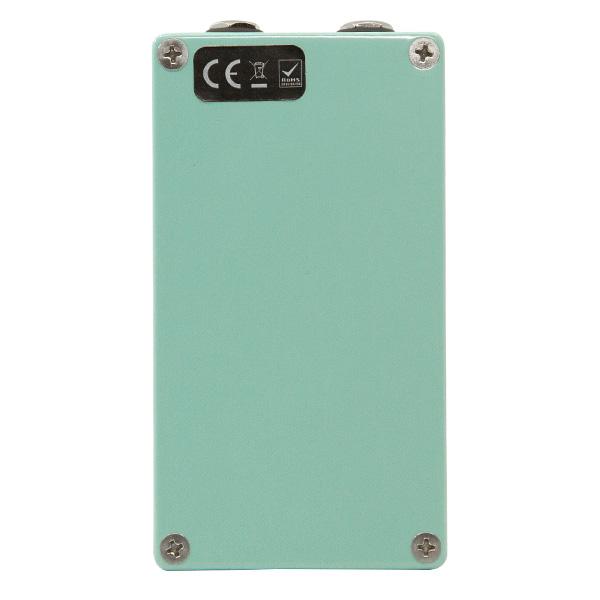

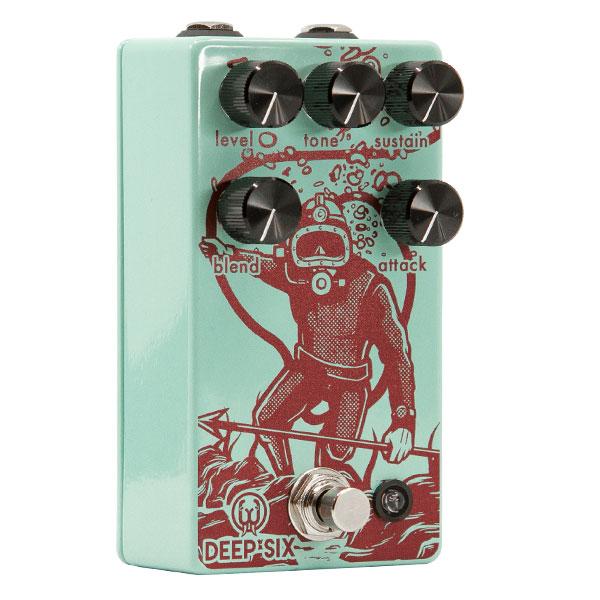

Walrus Audio Deep Six V3
Compressor Guitar Effects Pedal

The Deep Six V3 is a true bypass studio-grade compressor stomp box, inspired by the Universal Audio 1176 with the simplicity of the Ross and Dynacomp. The V3 adds a tone knob, soft switch bypassing, updated components for improved sound, and top mounted jacks. Polarity will never be an issue as it comes standard with a reverse polarity protection circuit. It runs at 18v thanks to an internal voltage doubler giving you the maximum headroom while maintaining a typical current draw of 8.9mA.

Level
Used to set the Deep Six to unity volume. When maxed out, the Deep Six provides enough output to drive the amplifier and other pedals for added sustain.

Tone
The tone knob works as a bass cut to help shape the low end of your guitar signal. Turn it up to cut more bass, and turn it down to let more bass through.

Sustain
For rhythm playing, run the Sustain control at lower settings so that the Compressor is more of a tone shaper. This will keep your sound nice and even and compensate for any variance in the velocity of your strumming. For those Santana/Clapton style leads, turn it up for more sustain.

Blend
Mixes in the compressed signal with the original, dry signal. Turn the Blend control up to blend in the compressed signal. For high output signals (humbuckers), the blend control allows you to dial in more of the dry signal and dial out the distortion that most humbuckers bring to a compressor.

Attack
Allows you to adjust how fast the compressor will react to your notes. Set it higher for punchier leads or lower for smooth rhythm.

Specifications:
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended. Power supply not included.

- Power; 9 Volt DC, Center Negative, 100ma min.
- Input; 1/4 inch cable from instrument
- Output; 1/4 inch cable to amplifier
- Dimensions: 4.77" x 2.9" x 2.3"
